Hv Power Supply Integrated Programmable
Basic Info
| Model NO. | HVCS15316 |
| Voltage Temperature Drift | <20ppm/ºC |
| Output Voltage Accuracy | <1 |
| Voltage Ripple | 100mv |
| Increasing Slope Range | 1-100 V/S |
| Decreasing Slope Range | 1-100 V/S |
| Communication Port | Ethernet, USB; Embeddable Epics Server; OPC-Ua |
| Transport Package | Wooden Case |
| Trademark | Fullde |
| Origin | China |
| HS Code | 8504409999 |
| Production Capacity | 100PCS/Month |
Product Description

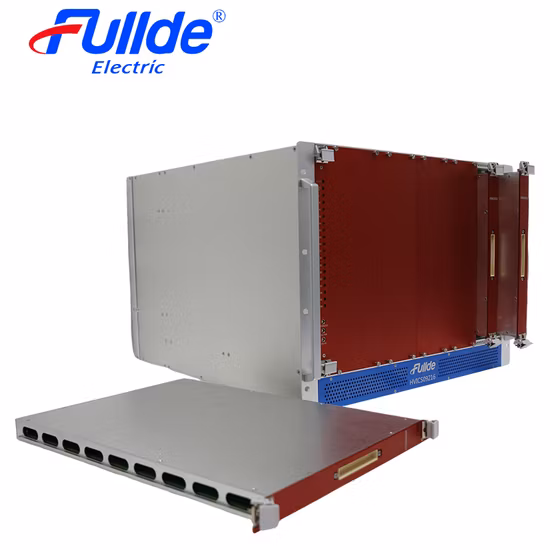

Programmable High Voltage Integrated Power Supply Product Description
HVCS-HVMD series programmable high-voltage integrated power supply is the latest product in the field of high-voltage integrated power supply.
The system includes a high-voltage output module (plug-in), a display module (plug-in), a general-purpose IO module (plug-in) and a monitoring module (plug-in).The most outstanding design characters: Modularity, Flexibility and Reliability. It can meet a wide range of application requirements in the fields of high-energy physics, nuclear physics, and medical instruments.The size of the host is a 19-inch standard 8U cabinet-type chassis.The technical characteristics of this series of HV integrated power supply as following:1. Suspension output, maximum output 2000V, 10mA;
2. Highly integrated chassis, which can contain up to 19 slots for installing high-voltage power supply modules (plug-ins), IO controllers, and other supporting controllers;3. The cooling fan is located at the bottom of the chassis, speed programmable;
4. The main controller and auxiliary power supply are located at the back of the chassis;
5. This series use RJ45 communication interface, USB interface, embeddable EPICS server, standard OPC-UA communication protocol;
6. The high-voltage output interface is located on the front panel of the chassis when the display is not selected, and is located on the rear panel of the chassis when the display is selected;
7. Auxiliary low-voltage power supply and communication ports are designed on the rear panel of the chassis;
8. Each channel of the power supply works independently, and the output voltage, switch state, voltage rise and fall slope can be independently set through local/remote;9. Each channel has over-temperature, over-voltage, and over-current protection, and the protection threshold of a single channel can be set independently through local/remote;
10. Each channel has temperature, voltage and current monitoring, and the current monitoring accuracy is better than 100nA;
11. Temperature compensation function, each channel has ultra-low temperature drift characteristics.

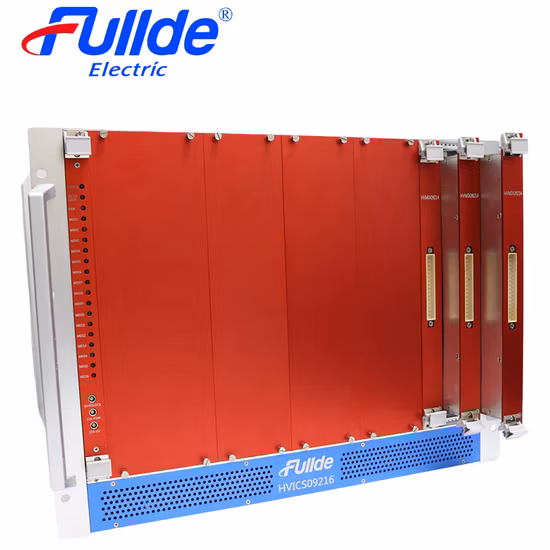

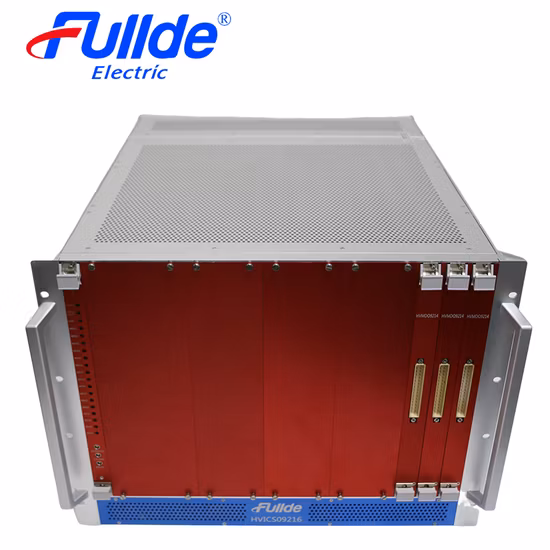

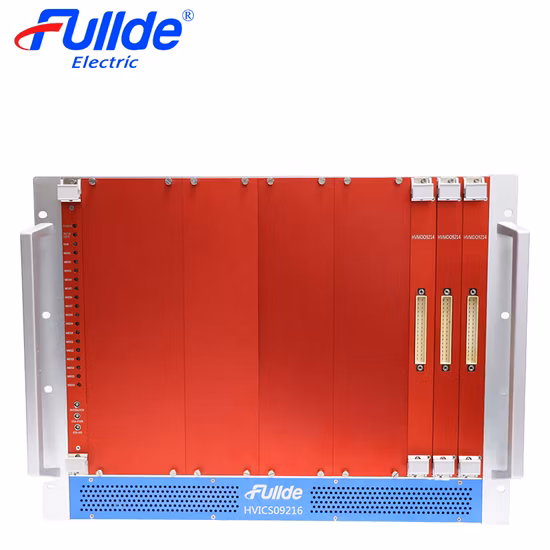

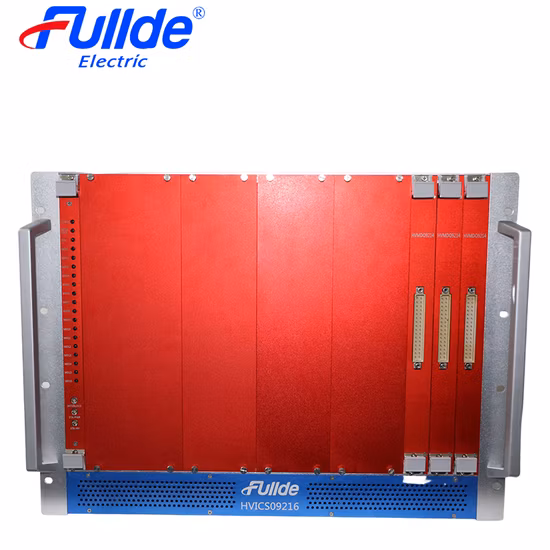

The power system is equipped with a friendly host computer interface as standard, and a color touch screen LCD is optional. Users can realize independent control and monitoring of any channel through the interface.Detailed Photos
| Model | HVCS09219 | HVCS09208 | HVCS15316 | HVCS18316 | HVCS20316 |
| Output Voltage(V) | 0~-900 | 0~-900 | 0~-1500 | 0~-1800 | 0~-2000 |
| Output Current(mA) | 3 | 6 | 3 | 3 | 3 |
| Module(plug-in) Qty for a set | 19 | 8 | 16 | 16 | 16 |
| Channel of Module(plug-in) | 14 | 32 | 14 | 14 | 14 |
| Voltage Monitoring Accuracy (V) | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
| Current Monitoring Accuracy (nA) | <100 | <100 | <100 | <100 | <100 |
| Voltage Temperature Drift (ppm/ºC) | <20 | <20 | <20 | <20 | <20 |
| Output Voltage Accuracy (V) | <1 | <1 | <1 | <1 | <1 |
| Voltage Ripple (mV) | 100 | 100 | 100 | 100 | 100 |
| Rising Slope Range (V/s) | 1-50 | 1-50 | 1-100 | 1-100 | 1-200 |
| Falling Slope Range (V/s) | 1-50 | 1-50 | 1-100 | 1-100 | 1-200 |
| Communication Port | Standard: Ethernet, USB; embeddable EPICS server; standard OPC-UA protocol | ||||
| Display Screen | Optional (standard PC software) | ||||
| Size | 19-inch 8U cabinet chassis | ||||
Packed with thin film, pearl cottom and finally wooden case to protect the products well during transportation.
Company Profile
Hunan Fullde Electric, registered capital of 50 million yuan, 82,409 square meters of land has been put into production, the third phase building is under construction. Hunan Fullde Electric has advanced production equipment; our technical strength has been recognized by the industry, and has obtained the ISO quality management system certificate, ISO environmental system certificate, occupational health and safety system certificate. The products are widely used in aerospace, ship drive, rail transit, smart power grid, wind power generation, industrial frequency conversion, new energy vehicles and other core fields of national strategic emerging industries.Guangdong Fullde Electronics is the parent company of Hunan Fullde Electric Co., LTD., located in Dongguan, Guangdong province and has an area of square meters factory, with complete production processes, and advanced production equipment and testing equipment, distributed in a number of service points across the country, can quickly respond to customer needs, and provide quality products.
As a leading R&D and manufacturing enterprise in the intelligent braking field, the company mainly produces and sells shore power supply, ship power drive system, UHV AC-DC filtering system, neutral grounding protection device and complete systems, flexible DC starting system, wind power low voltage crossing protection system, ship intelligent test load system, locomotive energy feedback system, rail transit locomotive braking system, and other types of new intelligent braking systems. The products are widely used in ship drive, frequency conversion power supply, rail transit, aerospace, data center, smart power grid, wind power generation, industrial frequency conversion, new energy vehicles and other core fields of national strategic emerging industries. Now it has become a strategic supplier of Jiangnan Shipyard, China Shipbuilding Industry, China Navy, State Grid, China Southern Power Grid, CRRC, GE, Siemens, Hitachi and so on.
1. Own R&D team to design as per requirement.
2. Own production line to produce the products which can make sure the quality.
1.What are your main products?
Special Power Supply,Load banks, NGR and all kinds of power resistors
2.Are you a manufacturer or trading company?
We are a manufacturer with our own production base and R&D center.
3.Where is your company?
HQ in Dongguan city,Guangdong province.Production base in Yiyang city,Hunan province. R&D in Zhuzhou city, Hunan province.
4.Where is your loading port?
Guangzhou Port, Shenzhen Port
5.What is your terms of delivery?
FOB/CIF/EXW
6.What about the lead time for production?
About 30-40 days
7.Are your products in stock?
Normally we don't have stock as they are all customized products.
8.Does your product have warranty service? How long is the warranty period?
Yes, we promise at least 12 months warranty.
9.What's your payment term?
T/T
10.If we have some other product requirements that your page don't include, can you help to supply?
Yes,ODM is welcome.we have a professinal R&D team,can provide all solutions for customers.
