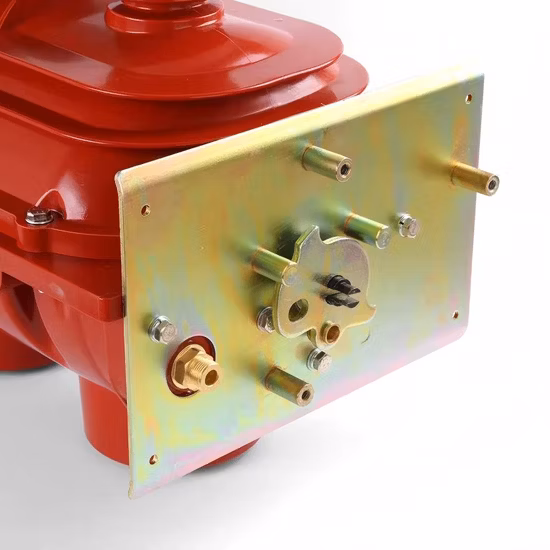

(XGN80-40.5kv) Sf6 Gas Insulated Switchgear

Basic Info

Model NO.	XGN80-40.5KV
Type	Power
Structure	Fixed Board
Certification	ISO9001:2000, CCC, TUV
Form	Partly-welded Type
Operation Voltage	35kv
Size	600*1485*2400 mm
Application Range	Industrial, Commercial, Utility
Shell Material	Stainless Steel
Shell Protection Grade	IP67
Brand	Talent
Transport Package	No Packing
Specification	Incoming panel
Trademark	Talent
Origin	China
HS Code	853720900
Production Capacity	5000 Pieces/Year

Product Description

XGN80-12/24/40.5KV
General
1.The products characterized by high safety, economy, reliability and flexibility.2.All the high voltage parts are all installed in a enclosed stainless chamber.3.Vacuum interrupting technology and low pressure gas insulation technology.4. New welding process and measuring devices ensure the low leakage.5.Single busbar system and double busbar system.6.Particulary designed for main transformer substation, power plant, industrial plant, high-speed railway staion, etc.7.Suitable for different environment conditon: high altitude, heavy dirt and pollution, salt spary, etc.8. SCADA compatible & Reote Operation.
Technical Parameters

Rated voltage/kv	36/40.5kv
Power frequency withstand voltage/kv	95/110kv
Lightning impulse withstand voltage/kv	185/215kv
Rated current/A	630-3150
Short circuit breaking current/KA	25/31.5
Short time withstand current/4s/KA	25/31.5
Peak withstand current/KA	63/80
Rated filling pressure(relative)/Mpa	0.05
Leakage rate	<0.5%/y
Insulation level under zero relative pressure/KV	95kv
Protection degree	IP65

Package substation
1. Provide one-stop solution for customer2. Single supplier to make project management and communication simple3. Pre-fabricated in factory to ensure high quality4. Shorter installation and commission time5. Saving land and labor at site
Producing departmentTest departmentApplicaiton Scenarios
